Model No: AL00060
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |
| Product Name | JST 12Pin to 7Pin and 3Pin Custom Wiring Harness |

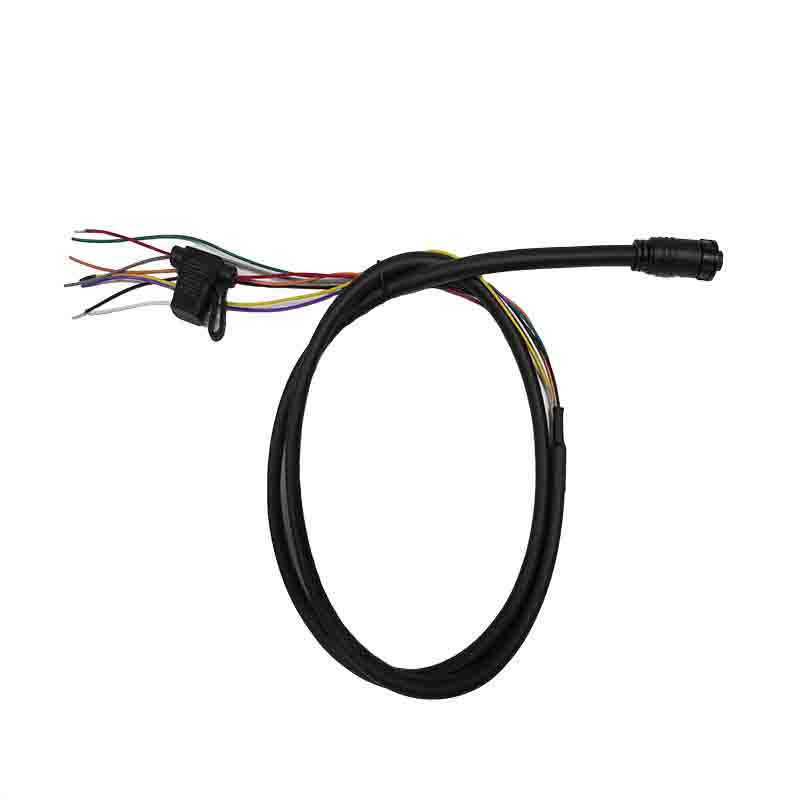

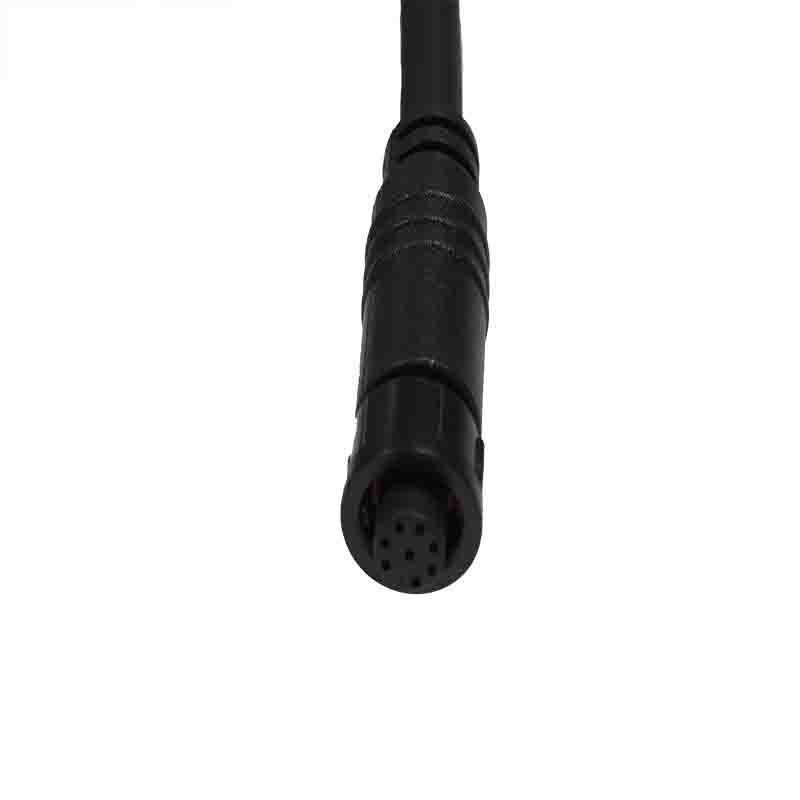

| Connector Configuration | • P1: M11 8Pin circular waterproof female plug with threaded locking plastic housing • P2: Open stripped bare wire end without connector, 8-core separated multi-color leads • A 3A inline blade fuse is pre-installed on the red wire circuit for overcurrent protection |
| Length | • Total overall cable length: 1220±20 mm • Distance from fuse position to wire stripping end: 305±10 mm • Stripped & tinned length of each bare wire tip: 8±1 mm • Cable coil dimension for packing: 240*160mm |
| Electrical Performance | • 100% continuity test: No short circuit, open circuit or misconnection • Withstand voltage: DC300V /10ms • Max conduction resistance ≤2Ω, Min insulation resistance ≥10MΩ |
| Material & Compliance | • Wire: 22AWG tinned copper stranded wire with black PVC insulation • Connector: M11 waterproof plastic female housing with locking nut • Accessories: 3A blade fuse, assorted size black heat shrink tubing, cable tie; all materials meet RoHS requirement |
| Application | Outdoor sensor wiring, industrial equipment power connection, vehicle auxiliary equipment wiring, outdoor monitoring device connection |
