Model No: AL00059
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |

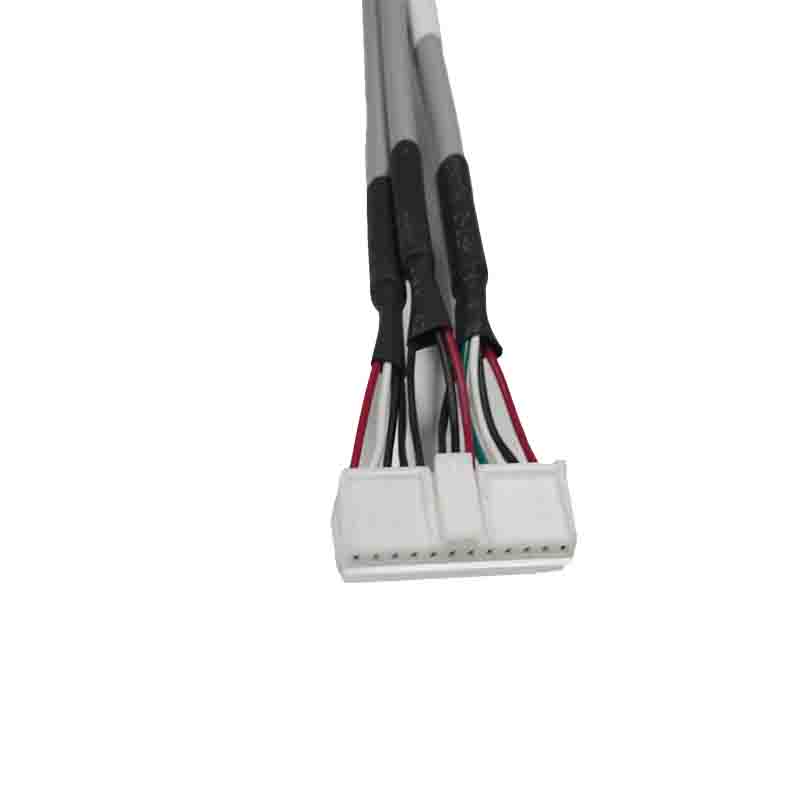

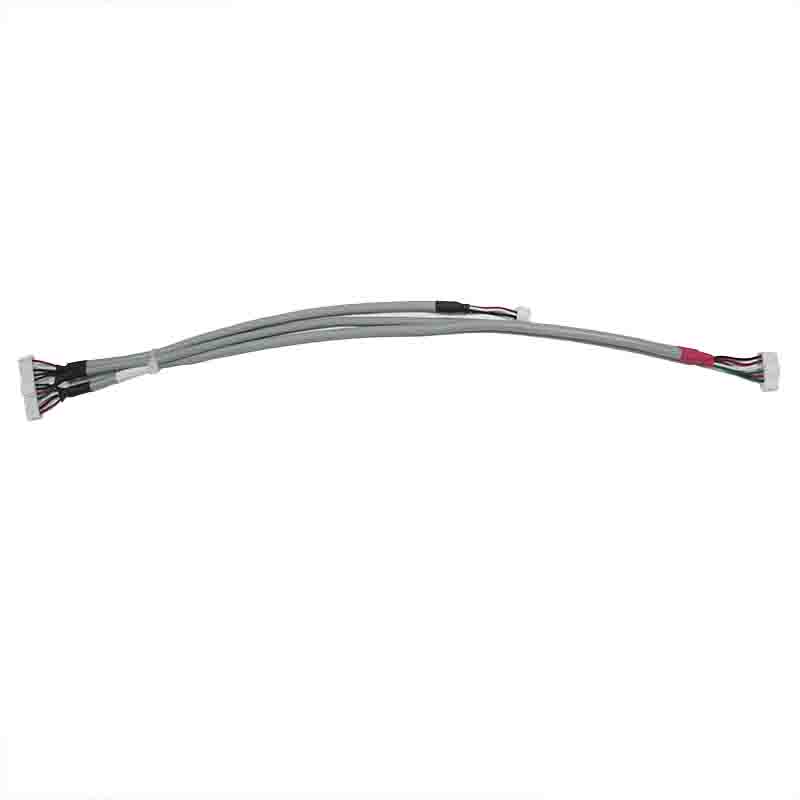

| Product Name | JST 12Pin to 7Pin and 3Pin Custom Wiring Harness |
| Connector Configuration | • P1: JST XAP-07V-1 white plastic 7Pin housing with original SXA-01T-P0.6 terminals • P2: JST XAP-07V-1 white plastic 7Pin housing, matches P1 terminal specification • P3: JST XAP-03V-1 white plastic 3Pin housing with JST standard crimp terminals • Unused spare core wires and ground leads at P2 & P3 ends are cut short and fully covered by heat shrink tubing per design |
| Length | • Overall full length from P1 to P2: 540±30 mm • Branch length from main cable to P3 connector: 370±20 mm • Heat shrink tubing length at every connector wire inlet: 25±5 mm • Segment dimension near terminal wrapping: 45±5 mm / 90±7.5 mm as marked on drawing |
| Electrical Performance | • 100% continuity inspection: No short, open or miswiring defects • Withstand voltage test: DC300V for 10ms without breakdown • Max conduction resistance ≤2Ω, Minimum insulation resistance ≥10MΩ • Terminal pull force ≥5LB (2.27KG) to guarantee stable connection |
| Application Scenarios | Household appliances internal wiring, industrial control panel connection, small electronic equipment internal power & signal transmission, customized equipment internal wiring assembly |
